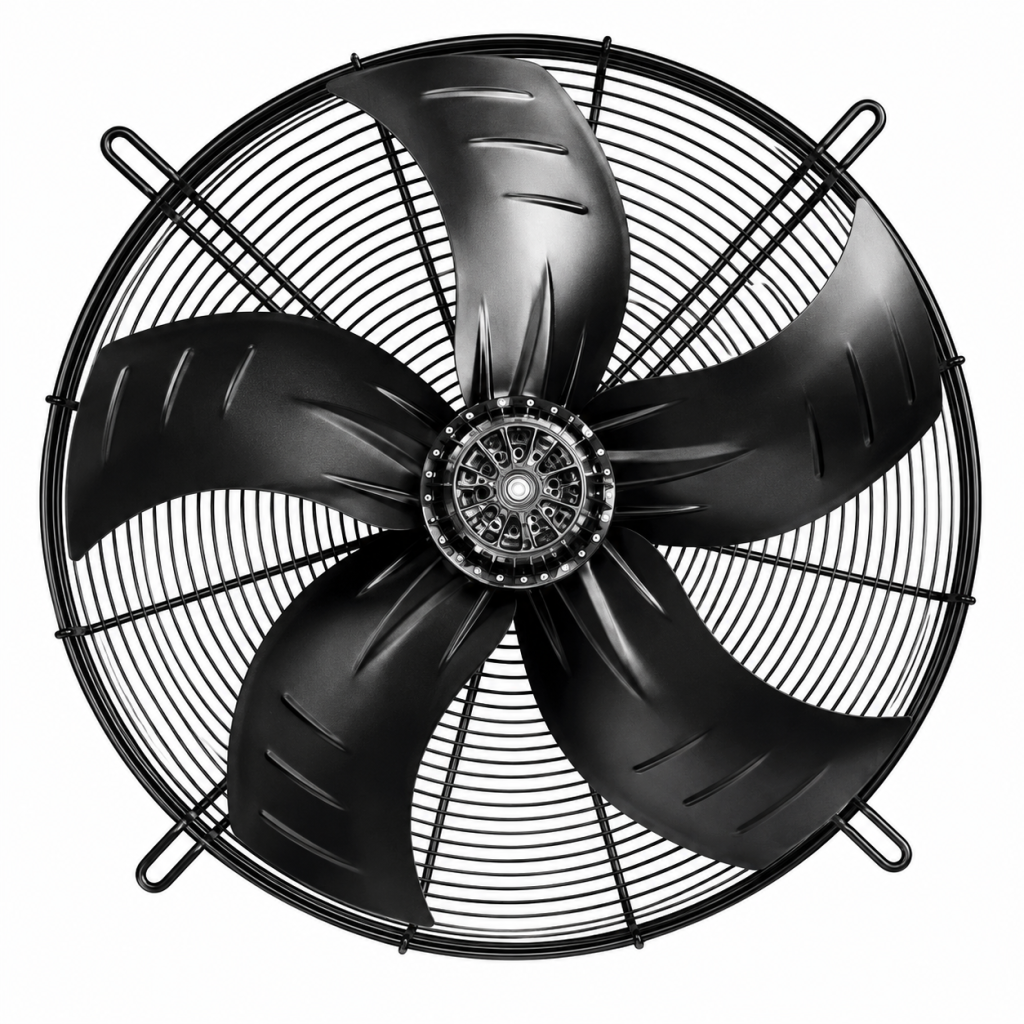

AC AXIAL FANS
ø630 mm
PRODUCT SPECIFICATIONS
Material: Steel
Weight: 15 kg
Typical Applications
HVAC Systems
Industrial Ventilation
Machinery Cooling
Equipment Ventilation

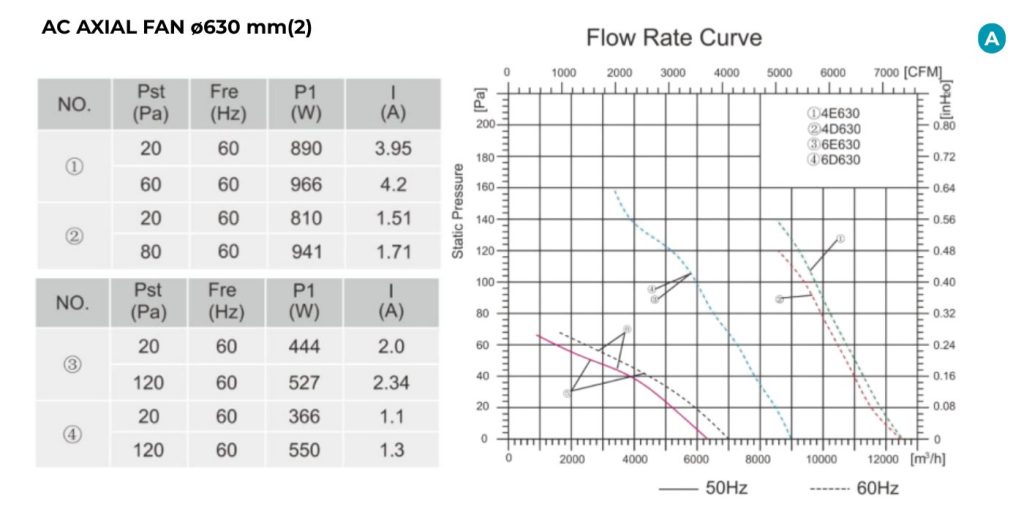

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VAC) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (m³/h) |
Ambient Temp. (°C) Max |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| 4E630Z | 230 | 60 | 4.15 | 950 | 1550 | 12500 | 50 | 81 |
| 4D630Z | 380 | 50/60 | 1.67/1.78 | 850/950 | 1300/1560 | 12500 | 50 | 81 |
| 6E630Z | 230 | 60 | 2.6 | 580 | 1050 | 9000 | 50 | 76 |
| 6D630Z | 380 | 60 | 1.3 | 550 | 1100 | 9000 | 50 | 76 |
