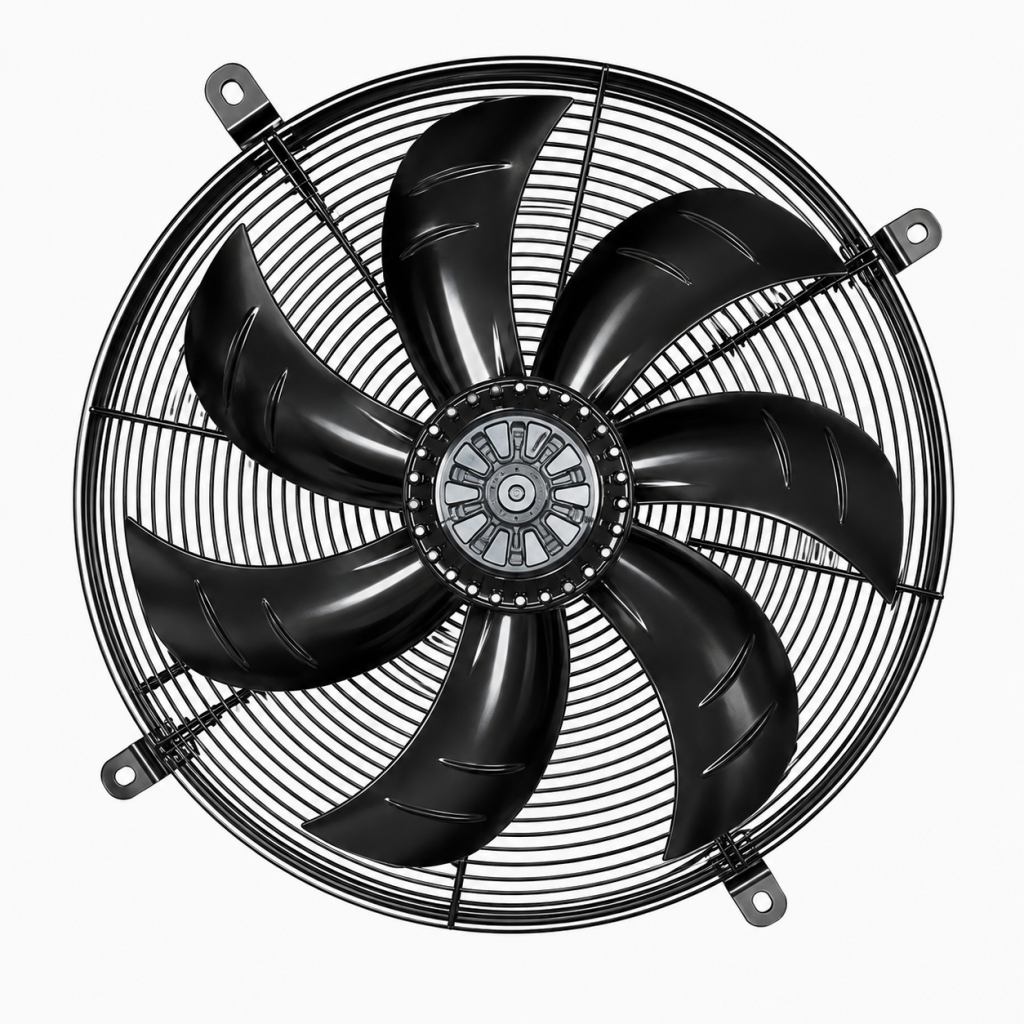

AC AXIAL FANS
ø710 mm
PRODUCT SPECIFICATIONS
Material: Steel
Weight: 29 kg
Typical Applications
HVAC Systems
Industrial Ventilation
Machinery Cooling
Equipment Ventilation
TECHNICAL DATA

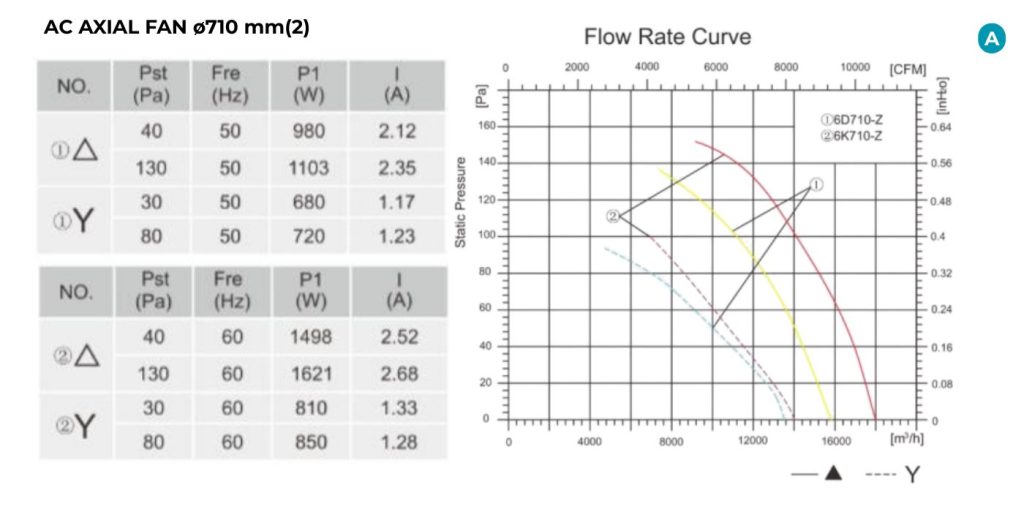

Performance Specifications
| Model | Voltage (VAC) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (m³/h) |
Ambient Temp. (°C) Max |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| 6D710Z | 400 | 50 | 2.35/1.2 | 1100/700 | 900/760 | 15800/13500 | 50 | 79/73 |
| 6K710Z | 460 | 60 | 2.65/1.36 | 1600/950 | 1050/900 | 18000/14100 | 50 | 81/75 |
