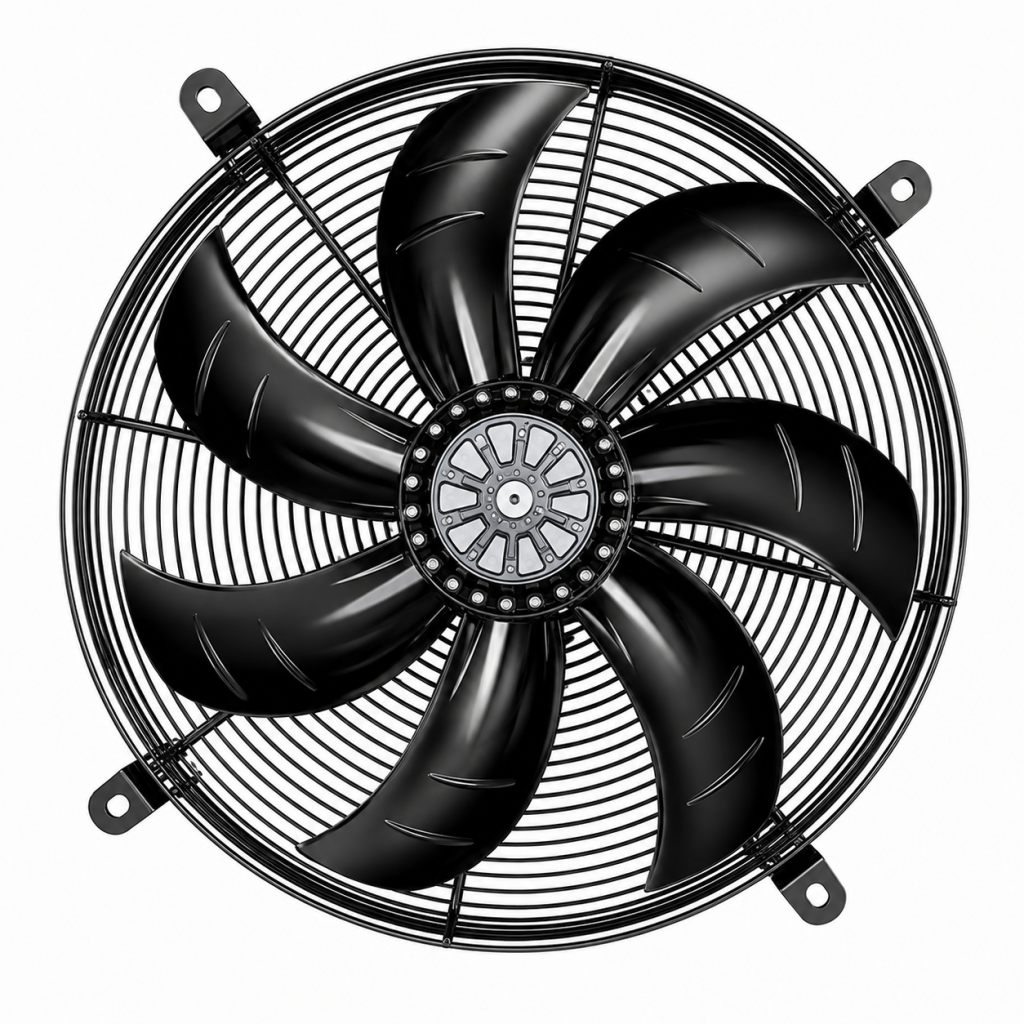

AC AXIAL FANS
ø800 mm
(Model: 800Z)
PRODUCT SPECIFICATIONS
Material: Steel
Weight: 31 kg
Typical Applications
HVAC Systems
Industrial Ventilation
Machinery Cooling
Equipment Ventilation

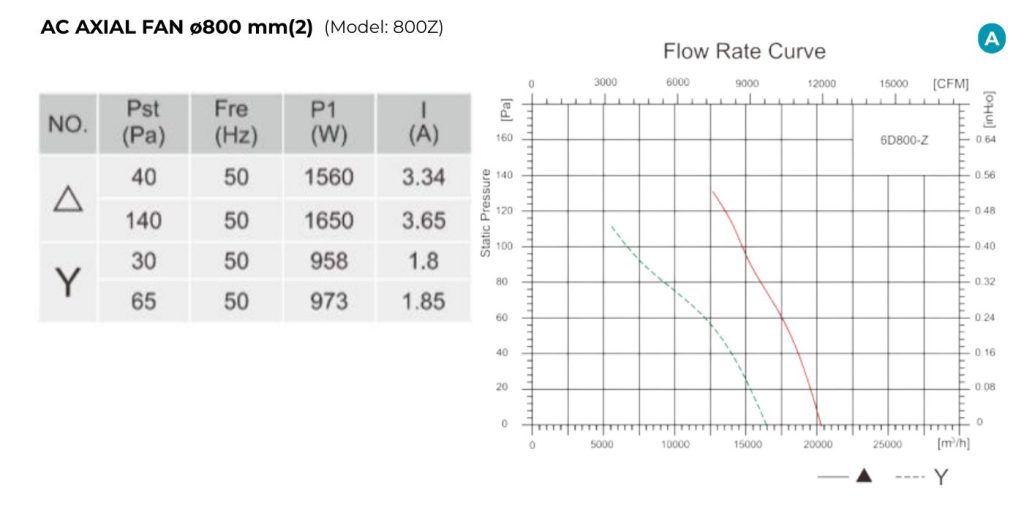

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VAC) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (m³/h) |
Ambient Temp. (°C) Max |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| 6D800Z | 400 | 50 | 3.65/1.94 | 1650/1060 | 880/700 | 20800/15600 | 50 | 80/74 |
