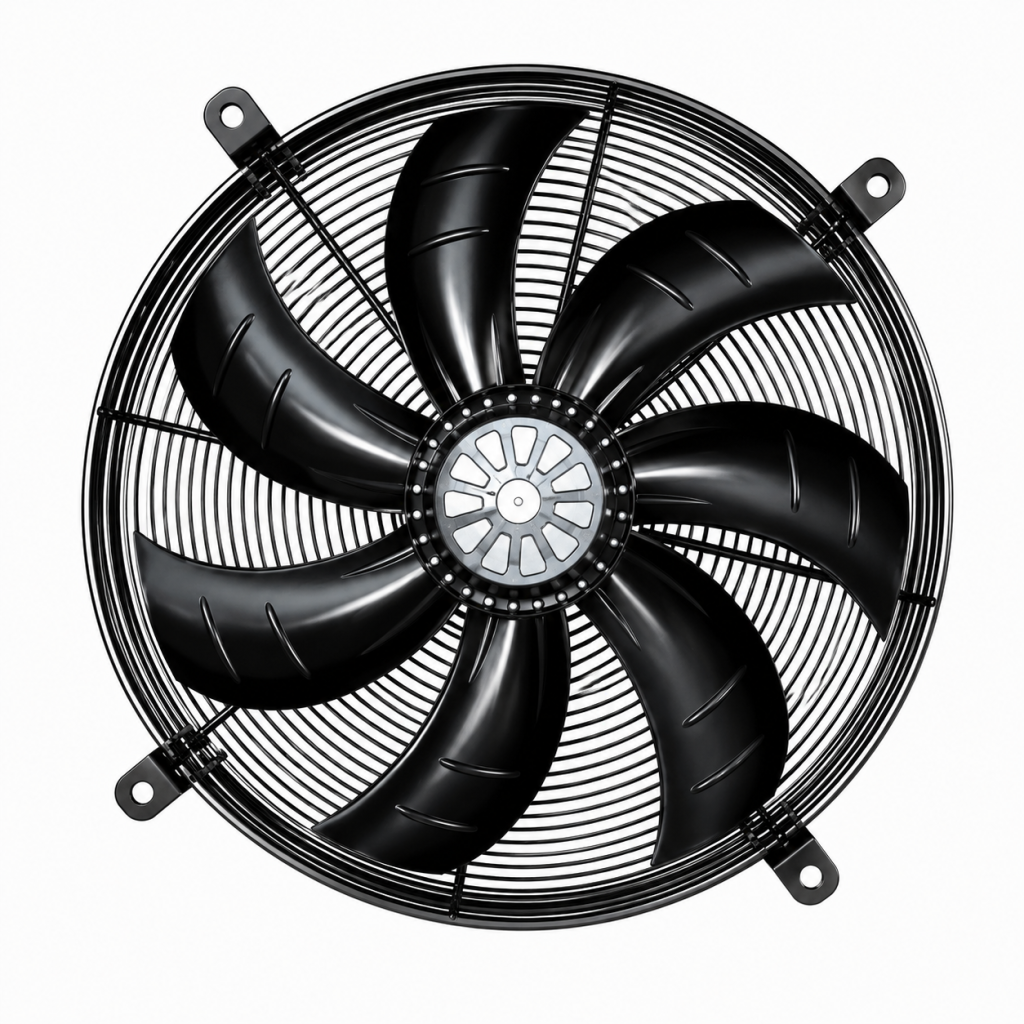

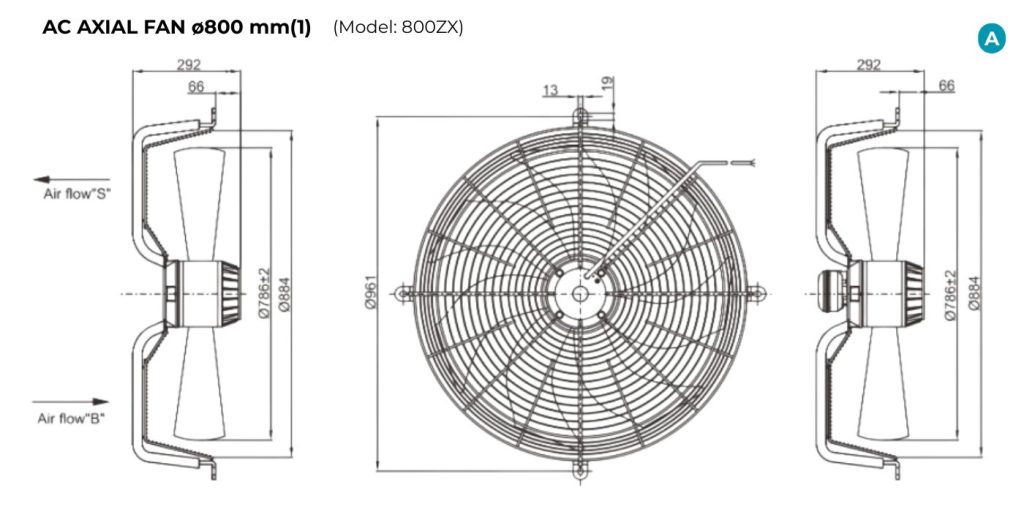

AC AXIAL FANS
ø800 mm
(Model: 800ZX)
PRODUCT SPECIFICATIONS
Material: Steel
Weight: 36 kg
Typical Applications
HVAC Systems
Industrial Ventilation
Machinery Cooling
Equipment Ventilation

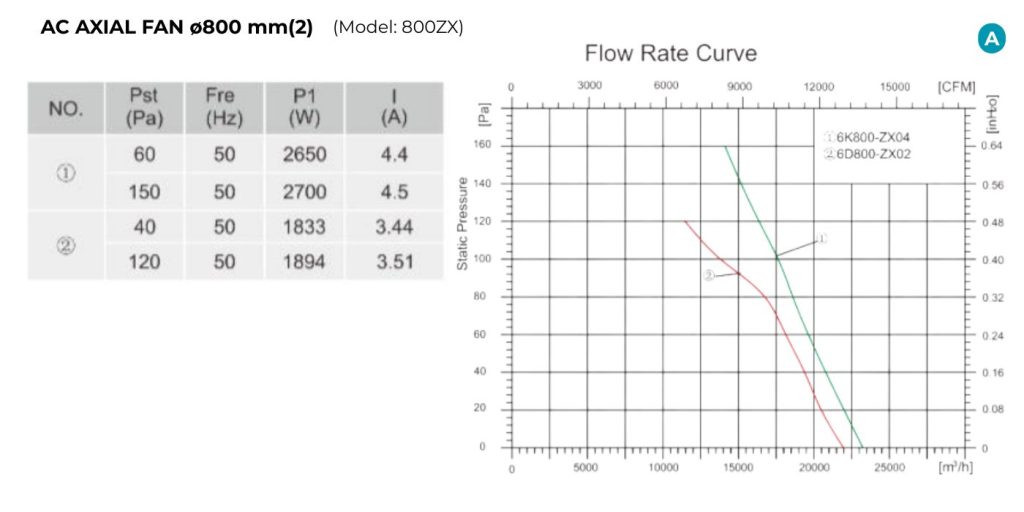

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VAC) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (m³/h) |
Ambient Temp. (°C) Max |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| 6K800-ZX04 | 460 | 60 | 4.5 | 2700 | 1070 | 22900 | 50 | 83 |
| 6D800-ZX02 | 400 | 50 | 3.6 | 1900 | 875 | 22500 | 55 | 80 |
