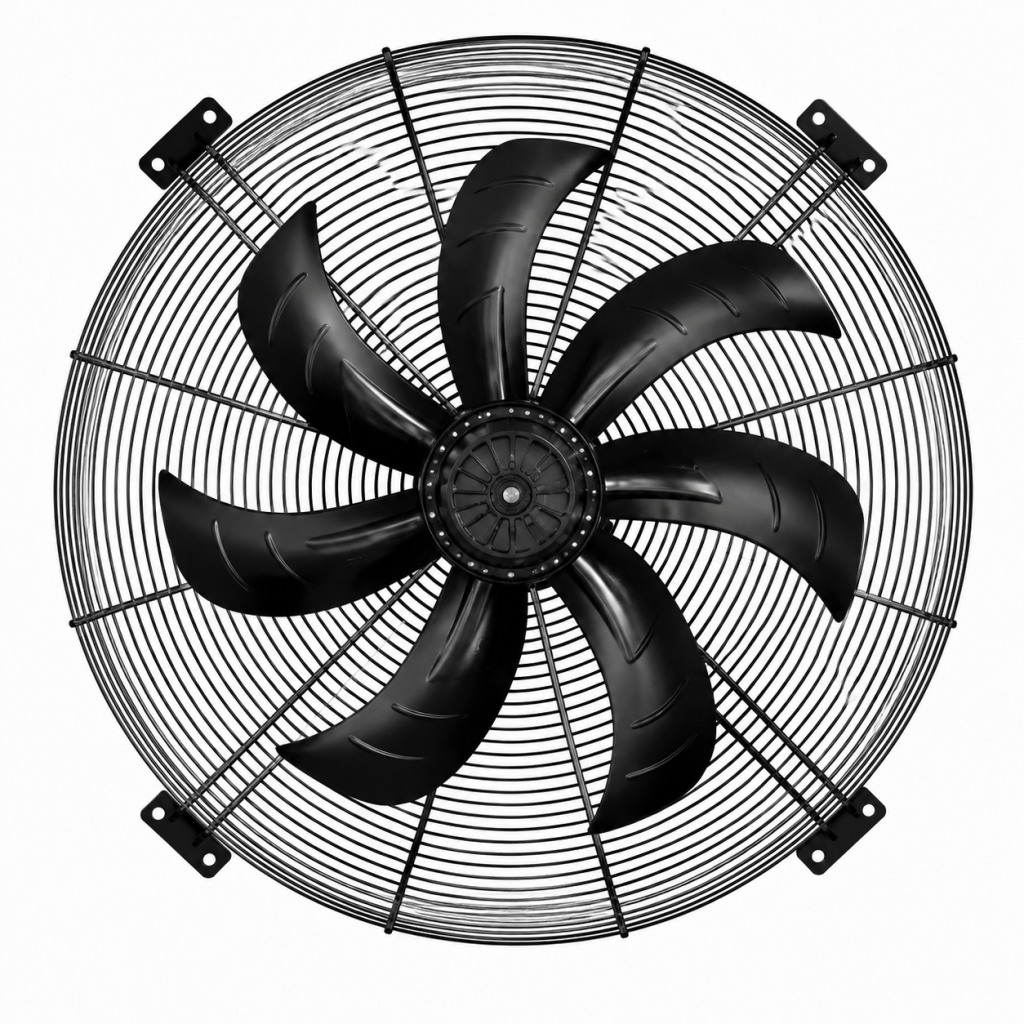

AC AXIAL FANS
ø910 mm
(Model: 910ZX04)
PRODUCT SPECIFICATIONS
Material: Steel
Weight: 38 kg
Typical Applications
HVAC Systems
Industrial Ventilation
Machinery Cooling
Equipment Ventilation

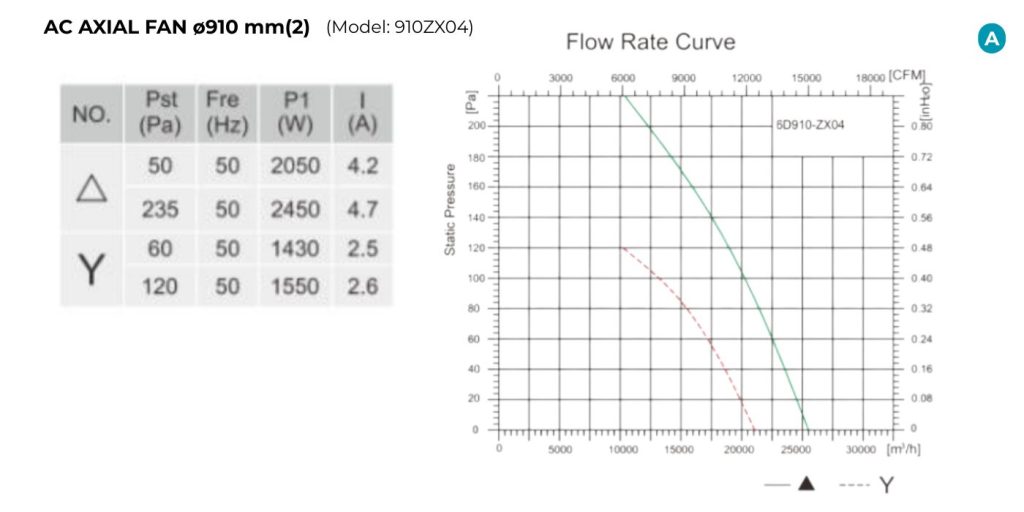

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VAC) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (m³/h) |
Ambient Temp. (°C) Max |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| 6D910-ZX04 | 400 | 50 | 4.7/2.6 | 2450/1550 | 870/670 | 25500/21000 | 50 | 82/75 |
