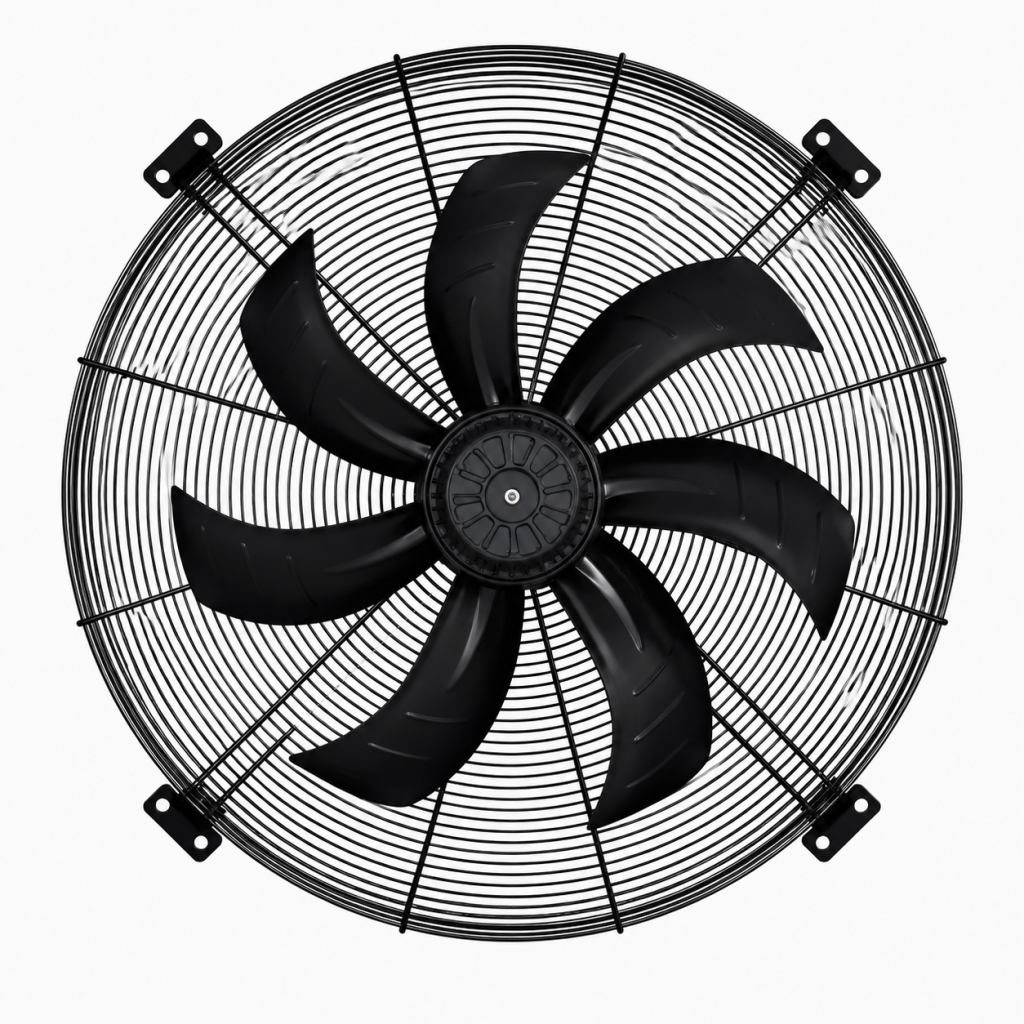

AC AXIAL FANS
ø910 mm
(Model: 910Z & 910ZX02)
PRODUCT SPECIFICATIONS
Material: Steel
Weight: 42 kg
Typical Applications
HVAC Systems
Industrial Ventilation
Machinery Cooling
Equipment Ventilation

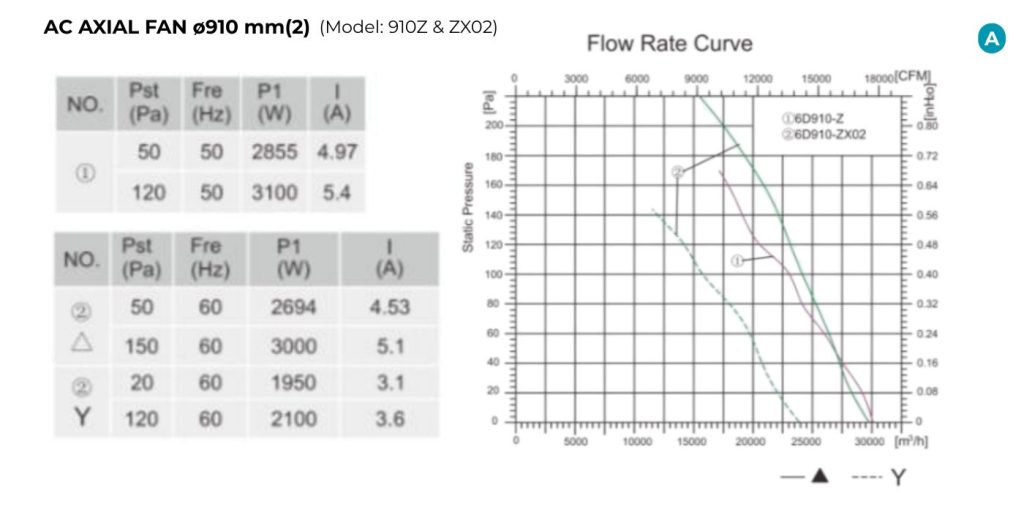

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VAC) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (m³/h) |
Ambient Temp. (°C) Max |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| 6D910Z | 400 | 50 | 5.4 | 3100 | 890 | 30000 | 60 | 82 |
| 6D910ZX02 | 400 | 60 | 5.1/3.6 | 3000/2100 | 1040/830 | 29000/24000 | 60 | 86/79 |
